Package libavg :: Module avg

Module avg

The main libavg module.

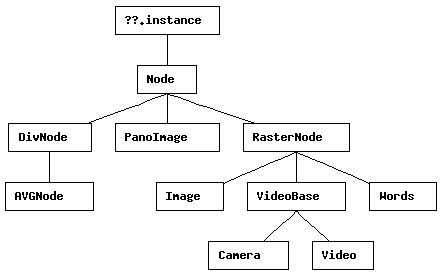

Class Hierarchy for Node

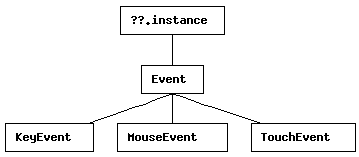

Class Hierarchy for Event

Class Hierarchy for Bitmap

Class Hierarchy for Tracker and TrackerCalibrator

Class Hierarchy for Logger

Class Hierarchy for ConradRelais and ParPort

Classes
	AVGNode Root node of any avg tree.
	Bitmap Class representing a rectangular set of pixels.
	Camera A node that displays the image of a camera.
	ConradRelais Interface to one or more conrad relais cards connected to a serial port.
	DivNode A div node is a node that groups other nodes logically and visually.
	Event Base class for user input events.
	Image A static raster image on the screen.
	KeyEvent Raised when a key is pressed or released.
	Logger Interface to the logger used by the avg player.
	MouseEvent Raised when a mouse-related event occurs.
	Node Base class for all elements in the avg tree.
	PanoImage A panorama image displayed in cylindrical projection.
	ParPort Used for low-level control of the parallel port's data, status and control lines.
	Player The class used to load and play avg files.
	RasterNode Base class for all nodes that have a direct 2d raster representation.
	TestHelper Miscelaneous routines used by tests.
	TouchEvent Raised when a touch event occurs.
	Tracker A tracker that uses a camera to track moving objects (e.g.
	TrackerCalibrator Used to map display points to camera points by mapping a set of reference points.
	Video Video nodes display a video file.
	VideoBase Base class for video and camera image nodes.
	Words A words node displays formatted text.

Variables
	A8B8G8R8 = `libavg.avg.pixelformat.A8B8G8R8`
	A8R8G8B8 = `libavg.avg.pixelformat.A8R8G8B8`
	B5G6R5 = `libavg.avg.pixelformat.B5G6R5`
	B8G8R8 = `libavg.avg.pixelformat.B8G8R8`
	B8G8R8A8 = `libavg.avg.pixelformat.B8G8R8A8`
	B8G8R8X8 = `libavg.avg.pixelformat.B8G8R8X8`
	CONTROL_AUTOFD = `libavg.avg.controllines.CONTROL_AUTOFD`
	CONTROL_INIT = `libavg.avg.controllines.CONTROL_INIT`
	CONTROL_SELECT = `libavg.avg.controllines.CONTROL_SELECT`
	CONTROL_STROBE = `libavg.avg.controllines.CONTROL_STROBE`
	CURSORDOWN = `libavg.avg.Type.CURSORDOWN`
	CURSORMOTION = `libavg.avg.Type.CURSORMOTION`
	CURSOROUT = `libavg.avg.Type.CURSOROUT`
	CURSOROVER = `libavg.avg.Type.CURSOROVER`
	CURSORUP = `libavg.avg.Type.CURSORUP`
	I8 = `libavg.avg.pixelformat.I8`
	IMG_CAMERA = `libavg.avg.TrackerImageID.IMG_CAMERA`
	IMG_DISTORTED = `libavg.avg.TrackerImageID.IMG_DISTORTED`
	IMG_FINGERS = `libavg.avg.TrackerImageID.IMG_FINGERS`
	IMG_HIGHPASS = `libavg.avg.TrackerImageID.IMG_HIGHPASS`
	IMG_HISTOGRAM = `libavg.avg.TrackerImageID.IMG_HISTOGRAM`
	IMG_NOHISTORY = `libavg.avg.TrackerImageID.IMG_NOHISTORY`
	KEYDOWN = `libavg.avg.Type.KEYDOWN`
	KEYUP = `libavg.avg.Type.KEYUP`
	MOUSE = `libavg.avg.Source.MOUSE`
	PARPORTDATA0 = `libavg.avg.DataBits.PARPORTDATA0`
	PARPORTDATA1 = `libavg.avg.DataBits.PARPORTDATA1`
	PARPORTDATA2 = `libavg.avg.DataBits.PARPORTDATA2`
	PARPORTDATA3 = `libavg.avg.DataBits.PARPORTDATA3`
	PARPORTDATA4 = `libavg.avg.DataBits.PARPORTDATA4`
	PARPORTDATA5 = `libavg.avg.DataBits.PARPORTDATA5`
	PARPORTDATA6 = `libavg.avg.DataBits.PARPORTDATA6`
	PARPORTDATA7 = `libavg.avg.DataBits.PARPORTDATA7`
	QUIT = `libavg.avg.Type.QUIT`
	R5G6B5 = `libavg.avg.pixelformat.R5G6B5`
	R8G8B8 = `libavg.avg.pixelformat.R8G8B8`
	R8G8B8A8 = `libavg.avg.pixelformat.R8G8B8A8`
	R8G8B8X8 = `libavg.avg.pixelformat.R8G8B8X8`
	RESIZE = `libavg.avg.Type.RESIZE`
	STATUS_ACK = `libavg.avg.statuslines.STATUS_ACK`
	STATUS_BUSY = `libavg.avg.statuslines.STATUS_BUSY`
	STATUS_ERROR = `libavg.avg.statuslines.STATUS_ERROR`
	STATUS_PAPEROUT = `libavg.avg.statuslines.STATUS_PAPEROUT`
	STATUS_SELECT = `libavg.avg.statuslines.STATUS_SELECT`
	TOUCH = `libavg.avg.Source.TOUCH`
	TRACK = `libavg.avg.Source.TRACK`
	X8B8G8R8 = `libavg.avg.pixelformat.X8B8G8R8`
	X8R8G8B8 = `libavg.avg.pixelformat.X8R8G8B8`
	YCbCr422 = `libavg.avg.pixelformat.YCbCr422`
	apple = `libavg.avg.YCbCrMode.apple`
	mesa = `libavg.avg.YCbCrMode.mesa`
	none = `libavg.avg.YCbCrMode.none`
	shader = `libavg.avg.YCbCrMode.shader`
